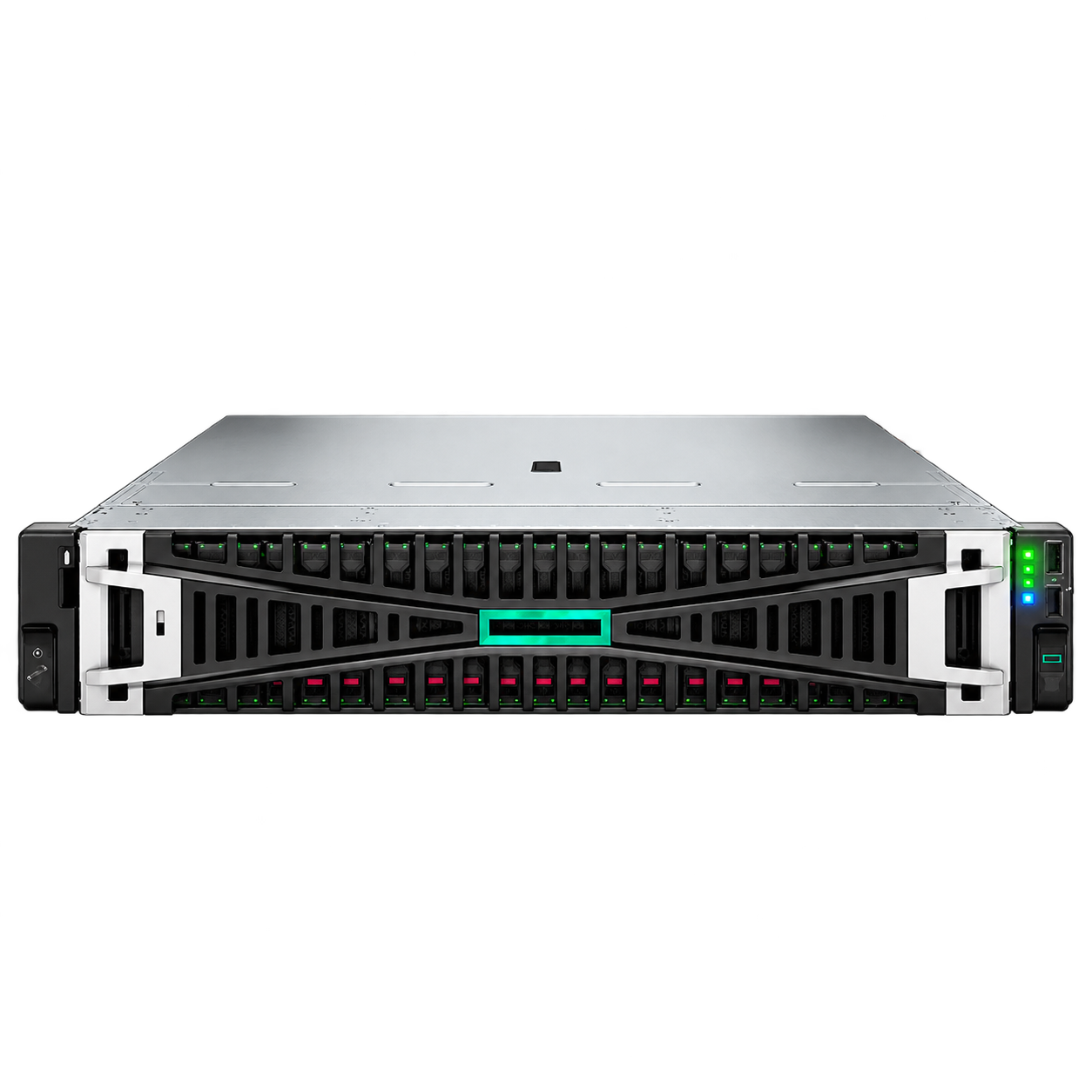

HPE ProLiant DL345 Gen11 8SFF Rack Server

The HPE ProLiant DL345 Gen11 8SFF Server is a high-performance 2U enterprise rack server built for organizations that need dependable compute power, fast storage, high-speed networking and room for future expansion. This configuration pairs an AMD EPYC 9115 16-core processor with 128GB DDR5 memory, a combination of SATA SSD and SAS HDD storage, 10/25Gb Ethernet connectivity and redundant Platinum power supplies.

Powerful AMD EPYC 16-Core Processing

At the center of this HPE DL345 Gen11 configuration is the AMD EPYC 9115 processor, operating at 2.6GHz with 16 cores and a 125W TDP. The processor is designed for multi-threaded workloads where consistent CPU performance matters, including virtualization, databases, enterprise applications, analytics, file services and general data center workloads.

The single-socket architecture provides a practical way to deploy substantial compute performance while keeping the server platform straightforward to manage.

128GB DDR5-6400 Memory

The server is configured with 128GB DDR5-6400 memory, installed as 4 × 32GB modules. With 12 DIMM slots, the platform provides additional room for memory upgrades as workload requirements increase.

The high-speed DDR5 memory configuration is well suited to virtual machines, databases, application servers and other workloads that benefit from additional memory bandwidth and capacity.

Mixed SSD and SAS Storage

This configuration uses a combination of SSD and HDD storage to provide a balance between performance and capacity.

The included storage consists of:

• 2 × 480GB SATA 6G Read Intensive SFF SSDs
• 2 × 1.92TB SATA Read Intensive SFF SSDs
• 2 × 1.2TB SAS 12G 10K Mission Critical SFF HDDs

This provides 6.72TB of total raw installed storage across six drives. SSDs can be used for operating systems, applications and frequently accessed data, while the 10K SAS drives provide additional enterprise storage capacity.

The 8SFF chassis can be expanded to 16 SFF front drives with the appropriate expansion hardware. The Tri-Mode backplane supports SAS, SATA and U.3 NVMe storage technologies, providing flexibility when upgrading the server.

HPE MR416i-p Gen11 Storage Controller

Storage connectivity is handled by the HPE MR416i-p Gen11 storage controller, featuring x16 lanes and 8GB cache. The controller is designed for enterprise storage environments and provides the storage management capabilities required for the connected drives.

High-Speed 10/25Gb Network Connectivity

For demanding network environments, this configuration includes a Broadcom BCM57504 4-port 10/25Gb SFP28 OCP3 Ethernet adapter.

The 10/25GbE connectivity makes the DL345 Gen11 suitable for applications that require faster movement of data between servers, storage systems and network infrastructure. Four SFP28 ports also provide flexibility for network design and connectivity.

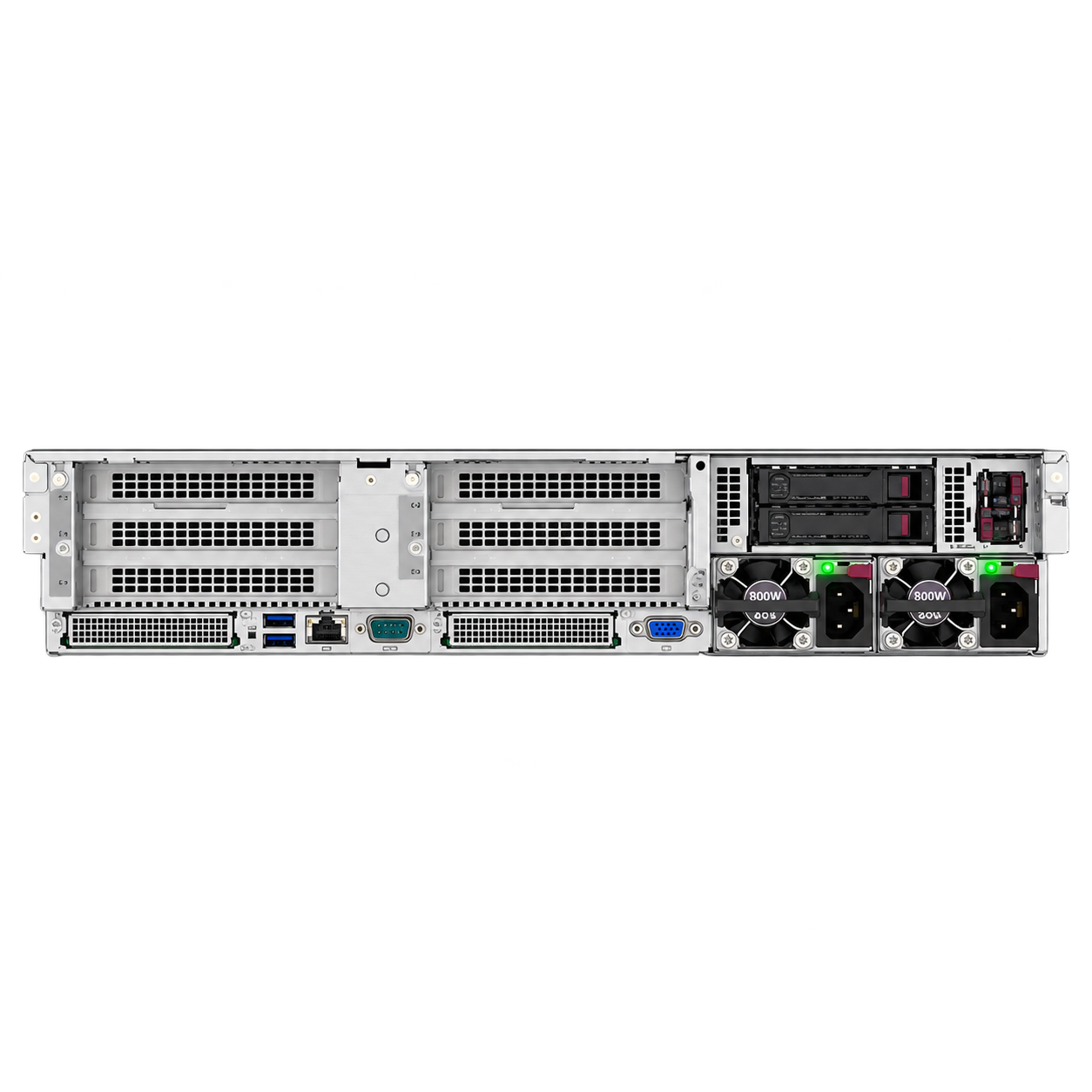

Redundant 800W Platinum Power

The server includes 2 × 800W HPE Flex Slot Platinum Hot-Plug power supplies configured for redundant operation. Using two power supplies helps improve resilience and allows a failed power supply to be replaced without requiring an unnecessary server shutdown.

HPE iLO Advanced Management

Remote server management is supported through HPE iLO Advanced, with a 3-year license included in this configuration. IT administrators can use the management platform for remote administration, monitoring and troubleshooting, reducing the need for physical access to the server.

Built for Scalable Enterprise Infrastructure

The HPE ProLiant DL345 Gen11 8SFF is designed for businesses and data centers that require a scalable 2U server platform. Its combination of AMD EPYC processing, DDR5 memory, mixed SSD/SAS storage, 10/25Gb networking and flexible SFF expansion makes it suitable for a wide range of professional workloads.

Typical applications include:

• Server virtualization
• Database workloads
• ERP and business applications
• File and application servers
• Data analytics
• Private cloud infrastructure
• High-speed network applications
• Enterprise storage environments
• General-purpose data center workloads

HPE ProLiant DL345 Gen11 8SFF Key Highlights

• AMD EPYC 9115 16-Core 2.6GHz Processor
• 128GB DDR5-6400 Memory
• 12 DIMM slots
• 2 × 480GB SATA SSD
• 2 × 1.92TB SATA SSD
• 2 × 1.2TB 10K SAS HDD
• 6.72TB total raw installed storage
• HPE MR416i-p Gen11 storage controller
• 8GB controller cache
• 8 SFF front drive bays
• Expandable to 16 SFF drives
• SAS / SATA / U.3 NVMe Tri-Mode support
• Broadcom BCM57504 4-Port 10/25Gb SFP28 Ethernet
• HPE iLO Advanced 3-Year License
• 2 × 800W Platinum Hot-Plug redundant PSUs
• 2U rack form factor
• HPE 3-Year Tech Care Basic service
• New enterprise server configuration

Buy HPE ProLiant DL345 Gen11 8SFF Server

If you are looking to buy an HPE ProLiant DL345 Gen11 8SFF Server, this configuration offers a strong combination of processing capacity, high-speed memory, mixed enterprise storage and 10/25Gb network connectivity. The expandable SFF architecture also gives organizations flexibility to increase storage as their infrastructure requirements grow.

With AMD EPYC performance, DDR5 memory, HPE Gen11 storage technology, redundant power and remote management capabilities, the DL345 Gen11 provides a solid foundation for modern enterprise and data center deployments.
